Discovering the Diamond Grinding Wheel: The Super Tool in Precision Grinding

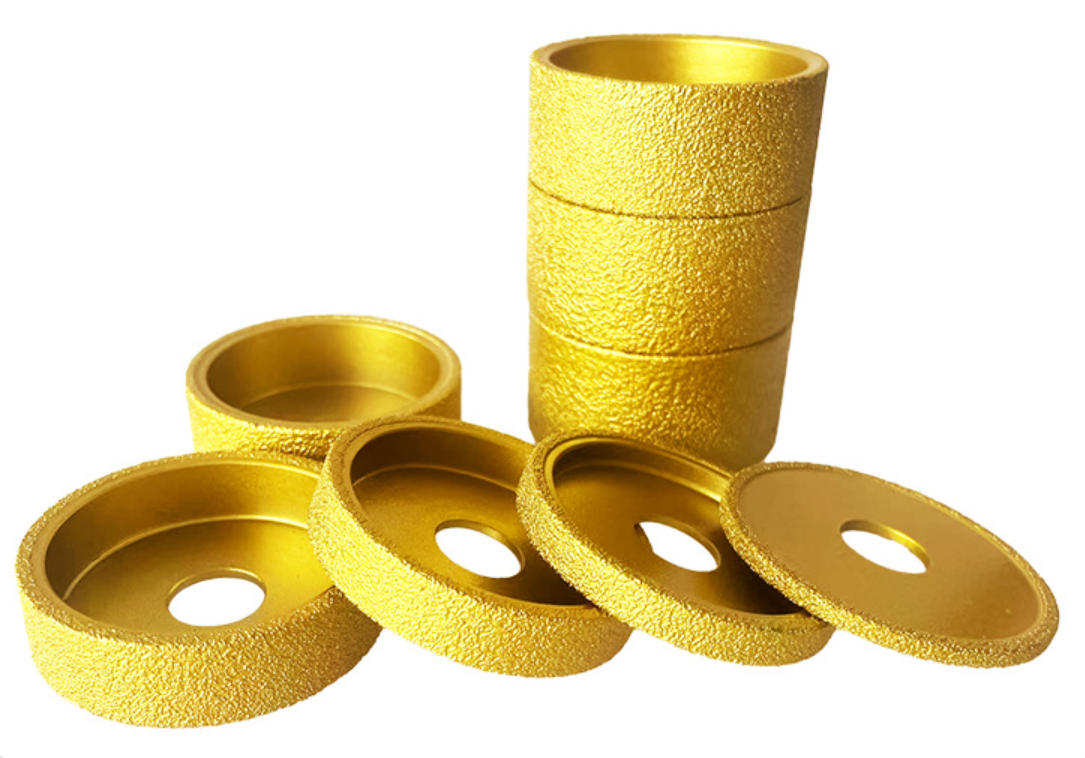

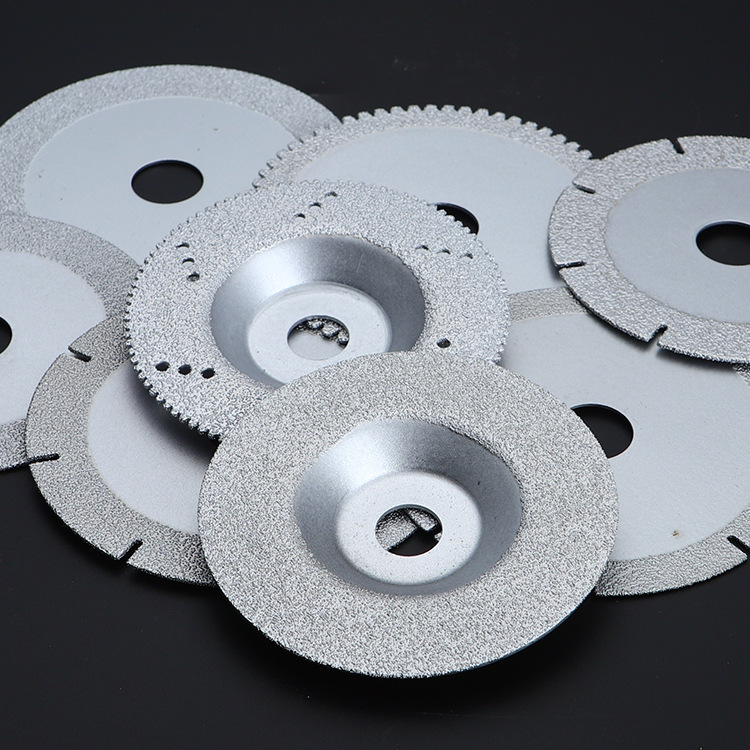

In the vast landscape of industrial manufacturing, few tools are as crucial yet as inconspicuous as the diamond grinding wheel. In simple terms, a diamond wheel is a superabrasive tool composed of diamond grains bonded by a metallic, resinous, ceramic or electroplated matrix, forming a solid circular structure with a central hole. Although its appearance may be simple, its internal architecture is an engineering marvel, typically consisting of three integral parts: the diamond abrasive layer, the transition layer, and the core. Each layer plays a distinct but collaborative role, allowing the wheel to perform high-efficiency grinding tasks with exceptional precision.

Deconstructing the Diamond Grinding Wheel: A Trio of Performance

Think of your structure as a precision team where each member has a specific role:

• The Abrasive Layer: The Cutting Edge

This outer layer is the warrior on the front line. Contains diamond abrasives, binder and filler materials. Diamond grains, the hardest material found in nature, act as the primary cutting force, effortlessly machining hard and brittle materials. The binder material acts as a powerful adhesive, holding the diamonds firmly in place and providing structural integrity and shape stability. Fillers are added to improve performance, such as increasing wear resistance or reducing grinding forces.

• The Transition Cloak: The Unsung Hero

Located between the abrasive layer and the core, this layer is the critical bridge. Made from a mixture of binder and filler materials, it is not involved in grinding but is vital for safety and durability. Dramatically improves the bond strength between the abrasive layer and the core, preventing the abrasive ring from coming off under high rotation speeds and immense grinding forces. It is the essential security lock that ensures overall stability.

• The Core: The Solid Foundation

Typically made of aluminum, steel or composite materials, the core is the backbone of the entire grinding wheel. It holds the abrasive layer and mounts securely to the grinding machine spindle using a flange. A high-quality, well-balanced core minimizes vibration and noise during high-speed operation, which is critical for superior grinding accuracy and finish.

Why Diamond Grinding Wheels Stand Out: Unmatched Properties

Diamond wheels outperform conventional grinding wheels due to a combination of exceptional properties:

• Exceptional Hardness and Cutting Capacity: The supreme hardness inherent to diamond allows these wheels to easily grind challenging materials such as tungsten carbide, advanced ceramics and optical glass, significantly increasing productivity.
• Superior Wear Resistance: Diamond grains wear very slowly, ensuring consistent grinding performance over a much longer lifespan compared to standard wheels. This reduces downtime due to wheel changes and lowers long-term operating costs.
• High Precision Machining: Minimal wear of the diamond grains allows the wheel to maintain its shape and cutting profile. This stability is indispensable in precision manufacturing, allowing critical tolerances in industries such as aerospace and semiconductor manufacturing.
• Low Grinding Force and Excellent Thermal Conductivity: These wheels typically generate less force on the workpiece, reducing the risk of deformation or damage. Additionally, diamond's excellent thermal conductivity helps dissipate heat quickly, preventing thermal damage such as burns or microcracks in the finished surface.

Wide Applications: A Key Tool in Various Industries

The unique properties of diamond wheels make them indispensable in modern manufacturing:

• Aerospace: Used for precision grinding and finishing of high-strength components, such as jet engine turbine blades, where extreme precision and surface integrity are non-negotiable for safety and performance.
• Tool and Mold Manufacturing: Essential for creating and maintaining high precision molds and dies from hardened steels, ensuring the quality and efficiency of mass production processes for plastics, stamping and casting.
• Semiconductors and Electronics: Criticisms in the production of silicon wafers and other components. According to a report from the Precision Manufacturing Group, diamond grinding is a key step in wafer thinning, allowing for precise thickness control and minimal subsurface damage, which directly increases wafer performance.
• Optical Manufacturing: They allow ultra-precision grinding and polishing of optical glass and crystals, achieving nanometric-level surface finishes required for high-performance lenses and laser components.
• Stone and Construction: A traditional and widespread application, diamond wheels are the preferred solution for efficiently cutting, shaping and polishing natural and artificial stone, from granite countertops to architectural elements.

As a leading manufacturer of high-performance abrasives, including cutting wheels, grinding wheels, sanding belts and related accessories for power tools, we leverage advanced diamond tool technology to provide our global customers with reliable and efficient grinding solutions. Explore our range of products to discover how we can improve your manufacturing capabilities.
