Disc wear and self-sharpening: practical answers for the real production line

There is no lack of theoretical literature on the wear mechanisms of abrasive discs: grain fracture, bond breakage, friction wear. Most professionals in the sector know these terms. But in the real plant, engineers rarely get into trouble for "not knowing the theory." Your real headaches are others:

Why does the same disc last twice as long with one batch of parts and fail quickly with another?

A customer complains that the disc "does not last long", but the G ratio (grinding ratio) is acceptable. Who is misunderstanding what?

Everyone talks about self-sharpening, but how do you actually adjust the disc formulation to achieve it?

Let's skip the repetition of manuals and talk about real production problems – and how to understand and control disc wear from an applied perspective.

1. Two types of "wear and tear": productive vs. non-productive

A common confusion arises on the shop floor: what the operator calls "rapid wear" may be completely different from what the process engineer understands.
Let's clarify:

Productive wear – The abrasive grains become dull, microfracture and fall while grinding the piece. It's the disk doing its job, creating value. A disc with good self-sharpening presents controlled and continuous productive wear.

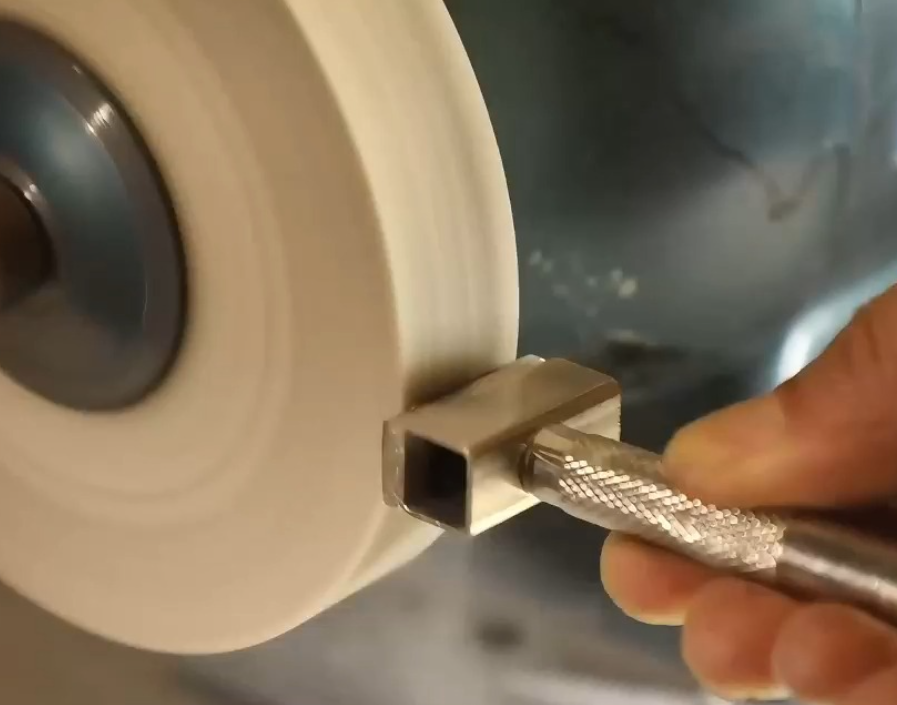

Grinding wear (resharpening) – Material forcibly removed when using a diamond for profiling or sharpening. During this operation, the disc is not machining any part: it is "receiving the knife." This wear and tear does not add value.
Many complaints that "the blade doesn't last" actually come from excessive grinding, not rapid productive wear.

Think about this: a wheel may have a high G ratio (very little self-wear while grinding). But if its self-sharpening is bad, the disc becomes glazed in a short time, forcing the operator to grind it every 30 minutes. Each grind removes 0.2 mm. At the end of the day, grinding wear can exceed productive wear. The customer simply concludes: "This blade disappeared in two days" – without distinguishing between grinding loss and resharpening loss.
Therefore, when evaluating wheel life, don't just look at the G ratio – measure the effective grinding time per unit of volume lost. This is a critical, often overlooked perspective for both manufacturers and end users.

2. Three dimensions adjustable in disc formulation

Self-sharpening is essentially controlling when the grains should fall out. We have three levers.

Dimension 1 – Binder retention capacity

It depends on the strength of the binder and the interface between binder and grain.

Vitreous binders: Reducing retention (e.g. by adding low melting point components) makes the grains come off more easily. Increasing the sintering temperature or binder ratio increases retention.

Resinous binders: Thermal resistance and crosslink density directly affect retention at high temperatures. At elevated grinding temperatures, resinous binder retention decreases significantly – this can be exploited (automatic grain release), but can also cause premature losses.

A common request: "The customer thinks the disc is too hard and won't cut – make it softer." Softening essentially means reducing binder retention to improve self-sharpening. But the method matters – reducing the binder ratio increases porosity and changes chip evacuation; modifying the composition of the binder without changing its proportion gives different results. The correct approach depends on the specific problem.

Dimension 2 – Grain fracture behavior

Not all grains obediently "microfracture."

Conventional alumina: Cracks tend to propagate transgranularly, leading to massive fracture rather than micro-chipping.

Microcrystalline alumina (ceramic grain): Composed of submicron crystallites; The cracks follow the grain boundaries, producing a controlled and progressive microfracture – a classic self-sharpening behavior.

Monocrystalline CBN: Relatively brittle, it tends to fracture completely under impact.

Polycrystalline CBN: Offers many grain boundaries, promoting microfracture.

If a customer reports that the grains "fall off whole" rather than micro-splintering, a possible cause is that the grain is too strong for the application – the impact energy fails to fracture it, but rather breaks the bond bridges.

Switching to a grain that microfractures more easily (not harder) may be the solution.

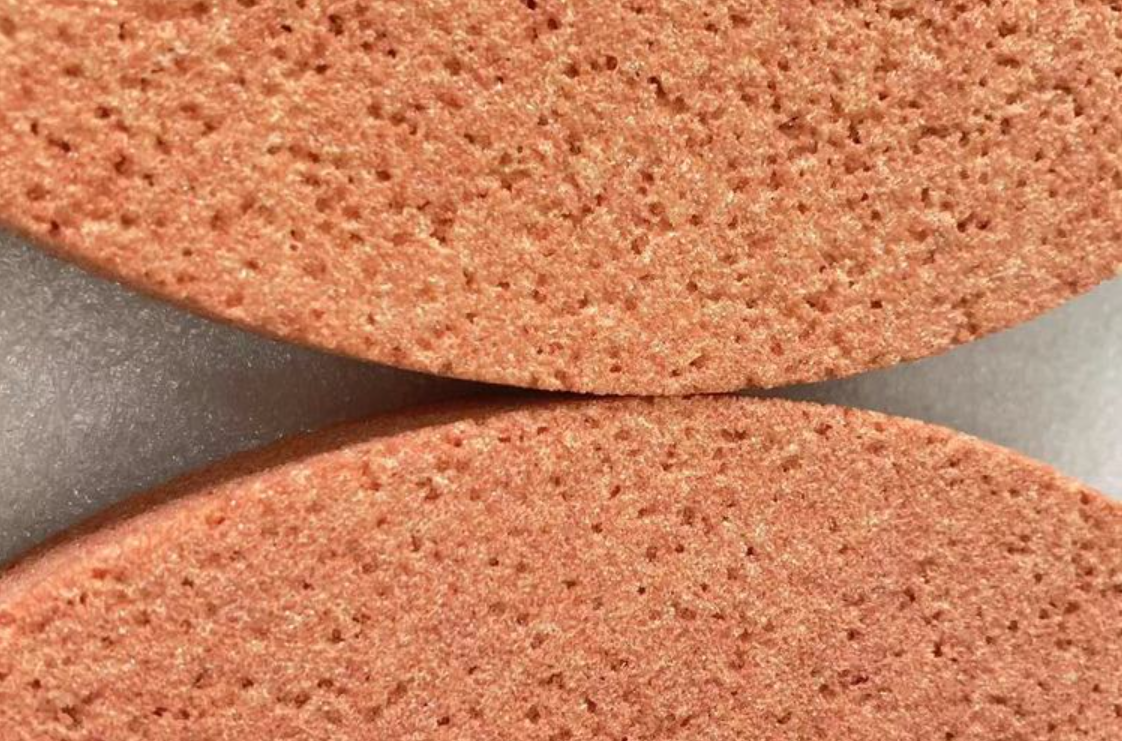

Dimension 3 – Porosity control

Porosity affects three things: chip evacuation space, coolant access, and effective cross-sectional area of the binder. With the same volume of binder, a more porous structure reduces the section of the bridges, decreasing retention. Thus, adjusting the porosity can change the "effective hardness" of the disc without changing the composition of the binder.

Sufficient porosity also prevents clogging (loading). Once the disc face becomes loaded (clogged with chips), grinding forces skyrocket, causing abnormal grain removal or massive fracture. Many "sudden disc failures" in the field are caused by loading, not wear itself.

3. Adjustment of the grinding parameters to the wear mode

The same disc can wear completely differently under different parameters.

Low disc speed: Lower impact force – dull grains tend not to fracture, causing glazing. Older (low speed) grinders generally need softer discs.

High speed (≥100 m/s): Greater impact on grain entry, promoting microfracture. But excessive speed can overcome the resistance of the binder, causing removal of the entire grain. CBN discs can handle higher speeds, but must match the bond strength.

Cutting depth and feed: Research shows that, by increasing undeformed chip thickness, crack propagation can change from transgranular to intergranular – meaning that heavier grinding (within a range) can promote microfracture. However, above a certain threshold, macroscopic fracture or complete tearing occurs.
Disc designers need to know the customer's actual grinding parameters. The same type of grit that self-sharpens ideally under one set of parameters can fail catastrophically under another – which is why "one wheel fits all" is rarely realistic.

4. Common problems in the workshop – practical diagnosis

Problem A – Frosting (disc does not cut)

Symptoms: Less sparks, dull sound, shiny/burned part surface, increased power consumption.

Diagnosis: The disc is too "hard" for the current conditions (insufficient self-sharpening) → reduce hardness or increase porosity. Too conservative parameters (low speed, shallow depth) → not enough microfracture. Insufficient coolant or poor nozzle position → softening of the binder or adhesion of the part material.

Problem B – Excessive disc wear (short life)

Symptoms: Rapid localized loss (edges or spots), non-uniform wear; visible notches.

Diagnosis: Binder too weak → increase hardness or binder volume. Grain too strong for the binder → the grains do not fracture, they break the bridges → change to a grain that microfractures more easily. Excessive impact (interrupted cuts, rigid mounting) → check grinding, consider vibration damping. Disc imbalance or machine vibration → uneven tension.

Problem C – Dullness (load)

Symptoms: Disc face black/glossy, chips filling the pores, grinding forces increase but different from glaze.

Diagnosis: Insufficient porosity → add pores. Incorrect refrigerant type or flow rate → increase flushing pressure, adjust concentration. The parameters generate chip shapes that do not evacuate → adjust parameters or add larger pores.

Problem D – Excessive grinding (resharpening) frequency

Diagnosis: First determine the dominant cause of wear. Glazing leading to frequent grinding → same as Problem A. Rapid productive wear (low G ratio) but acceptable self-sharpening → consider more wear-resistant grain or stronger binder. If each grinding pass removes too much material → review aggressive grinding parameters.

5. An often overlooked problem: disk consistency

For manufacturers, a frustrating customer comment: "Some disks from the same batch work well, others don't" or "The first batch was good, the second was not."

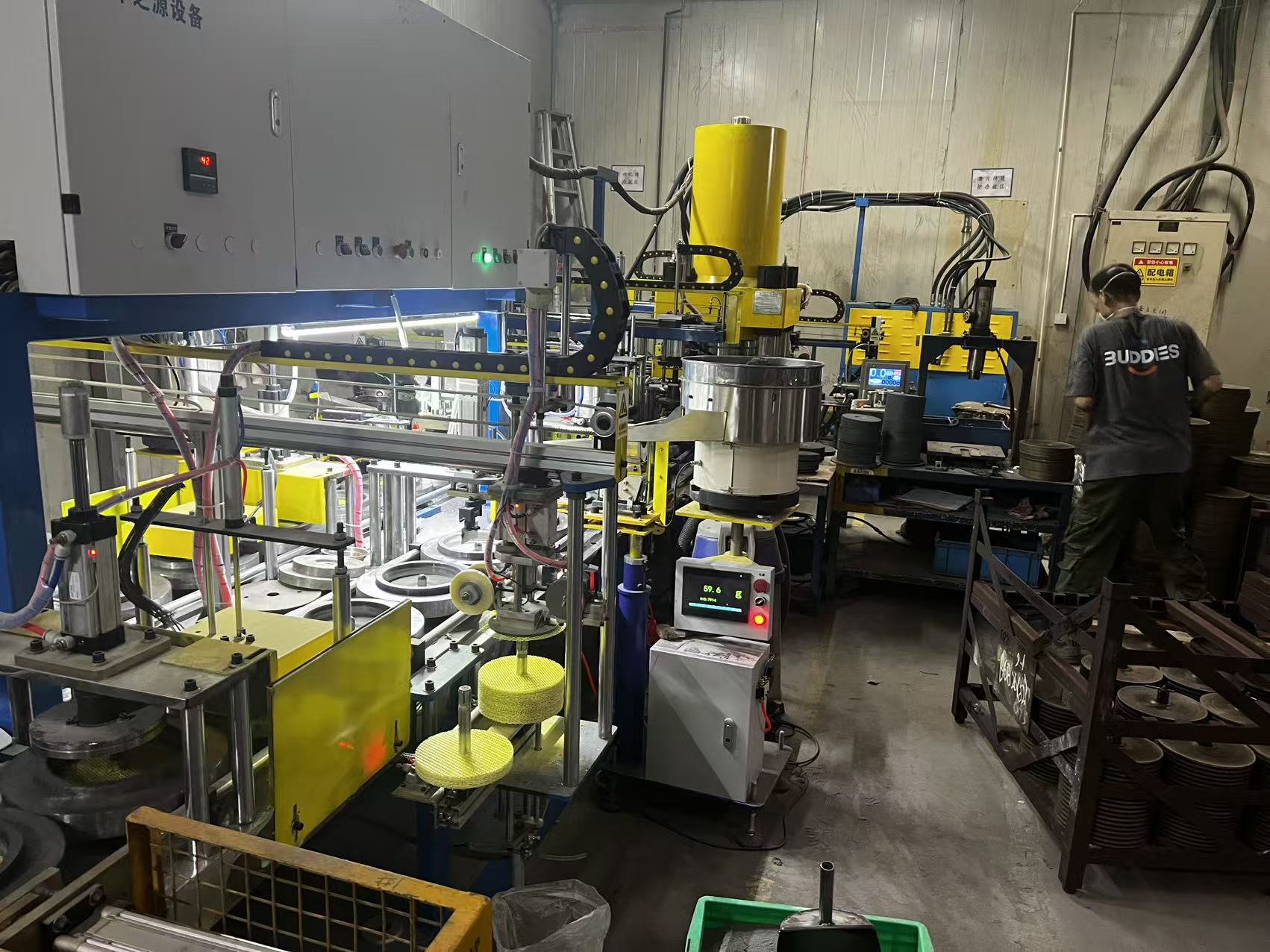

This is rarely a wear mechanism issue – it is a process consistency issue. Weighing errors in binder components, mix uniformity, variations in firing temperature, changes in molding pressure – all affect the final retention strength of the binder, which is precisely the key to self-sharpening.

Practical process control points:

Precision in weighing binder components.

Temperature uniformity within the oven (variations cause hardness distribution within the same batch).

Hardness testing and registration for each batch, allowing traceability when customer comments arrive.

They seem like "basic operations", but in actual production management they are often neglected.

Conclusion

Talking about disc wear without specific working conditions does not make sense. The same wheel that self-sharpens perfectly on material A can glaze or break on material B. For wheel manufacturers, understanding the customer's actual machining conditions – machine rigidity, cooling, grinding parameters, part material – is the first step in recommending or designing the right product. For end users, understanding wear mechanisms helps to address external factors (parameters, coolant, grinding) before complaining that "the disc is bad."

When wear is properly controlled, an abrasive disc is no longer just a consumable and becomes a reliable process partner.
